an OBS plugin to display the status of an ongoing cd recording as a dock

Noah Vogt 420aa140a6 retry websocket connection every 3 seconds w/ animation 1 vecka sedan
cmake 2c550969af cmake: Adjust macOS SDK detection 2 månader sedan
data b75e67843c add data locale template 5 år sedan
.clang-format 337dfd4d37 clang-format: Increase column size limit to 120 5 månader sedan
.gersemirc 5f01841da4 build-aux: Replace cmake-format with gersemi 5 månader sedan
.gitignore b9d3f97709 first working version: reading from /tmp/cd_status.txt 1 vecka sedan
CMakeLists.txt fc6a05a6cb switch to websocket as information receiver 1 vecka sedan
CMakePresets.json 5da535ca68 cmake: Update CMake files to current state found on obs-studio 5 månader sedan
LICENSE b9d3f97709 first working version: reading from /tmp/cd_status.txt 1 vecka sedan
README.md 420aa140a6 retry websocket connection every 3 seconds w/ animation 1 vecka sedan
buildspec.json 5da535ca68 cmake: Update CMake files to current state found on obs-studio 5 månader sedan
cd-rec-status.cpp 420aa140a6 retry websocket connection every 3 seconds w/ animation 1 vecka sedan
recording_active.jpg 9d6e8456e2 use colors and custom text for each recording / websocket connection state 1 vecka sedan

README.md

CD Rec status

An OBS plugin to display the status of an ongoing cd recording as a dock.

The offical obs plugin template was used to create this plugin.

How it works

This plugin listens in on a WebSocket server on ws://localhost:8765 from which it receives messages like:

{
  "recording": true,
  "cd": 3,
  "track": 7,
  "cd_time": "12:03",
  "track_time": "01:26"
}

An example implemtation of such a websocket can be found here.

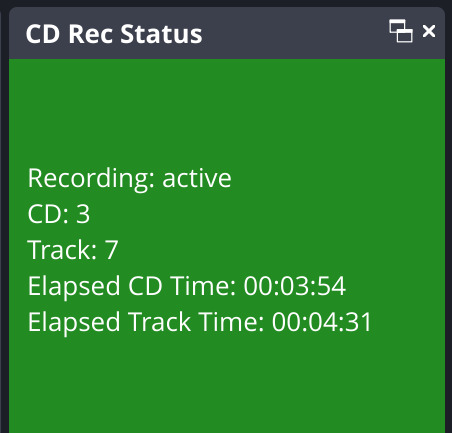

It then adds a dock on the obs studio interface titled CD Rec Status that displays the state of the (ongoing) cd recording.

Building

  • checkout the obs studio repository
  • cd UI/frontend-plugins
  • run git clone https://github.com/noahvogt/obs-cd-rec-status.git cd-rec-status
  • add the following line to the CMakeLists.txt file: add_subdirectory(cd-rec-status)
  • follow the offical obs build instructions for your prefered platform

You now have compiled OBS with the plugin. But you probably don't want to rebuild obs after every new release. So just find the cd-rec-status.so file in the build directory and put it into a plugin directory you can point your regular obs installation to. If you are unsure on how to structure the plugin directory, have a look at the releases on this github repository.
